Side-Mount Drawer Slides
Side-mount drawer slides fasten to the sides of the drawer and the inside of the cabinet. They fit standard drawer boxes, they're simple to install and replace, and they come in every weight rating, from light-duty file drawers to 600 lb industrial loads.
What we carry
- Ball-bearing full-extension slides: the CSH full-extension slide is rated 100 lb at 18" with a lever disconnect, plus Knape & Vogt, Fulterer, Hettich and Pride Industrial models. See all full-extension drawer slides.
- Over-travel slides: CSH and Fulterer slides with 1" over-travel, which open past the cabinet front for full access to the drawer.
- Soft-close and push-to-open: the CSH soft-close side-mount slide, KV G-Slide 4270 and the KV 4260 push-to-open slide. See all soft-close drawer slides.
- Heavy-duty slides: the KV 8810 (200 lb), the Fulterer 450 lb slide with lock-in and lock-out and Sugatsune stainless steel slides up to 600 lb.
- Stainless steel slides: Sugatsune stainless slides in light-duty to heavy-duty ratings, and the Knape & Vogt 6400 stainless full-extension slide.
How to size side-mount slides
- Clearance: most side-mount slides need 1/2" on each side, so build the drawer 1" to 1-1/16" narrower than the opening. Heavy-duty slides can need more: the KV 8810 needs 3/4" per side.
- Height: check the slide height against the drawer side. CSH ball-bearing slides are 1-3/4" tall; the KV 8810 is 2".
- Length: match the slide to the drawer depth. Knape & Vogt's example is a 21" slide for a 22" drawer in a 24" deep kitchen cabinet.
- Width: Knape & Vogt notes that drawers wider than 24" can rack, and recommends slides designed for the width of the drawer.
Questions
How much clearance do side-mount drawer slides need?
Most need 1/2" on each side of the drawer, for 1" total. Heavy-duty slides like the KV 8810 need 3/4" per side. Check the clearance listed on each product.
What length side-mount slide do I need?
Choose the slide by drawer depth. A 22" deep drawer usually takes a 21" slide, and the slide must not be longer than the inside depth of the cabinet.
What is a lever disconnect?
A small lever on each slide that lets you lift the drawer out without unscrewing anything. The CSH full-extension and many Knape & Vogt slides have one.
Are side-mount drawer slides strong enough for heavy drawers?
Yes, with the right rating. Side-mount slides cover the heaviest loads we sell, from 200 lb Knape & Vogt slides to Sugatsune stainless slides rated up to 600 lb.
Viewing 355 Results
Sort Best selling
-
500 Series GO-EZ Replacement Kit -
CSH Slide Full Extension 100 lbs Weight Capacity 14" Length -
KV 8810 Series Slide Heavy Duty 22" Length -
CSH True Standard Slide Full Extension 100 lbs Weight Capacity 20" Length -
CSH Key Board Slide Ball Bearing Lock-In Lock-Out Black 16" Length -
CSH Soft-Close Side-Mount Slide 100 lbs Weight Capacity 28" Length -
Low Profile Full Extension Ball Bearing Slide 75 lbs Load Capacity, 12" Length -
CSH Slide Full Extension With 1" Overtravel 130 lbs Weight Capacity 28" Length -
CSH Slide Full Extension With 1" Overtravel 100 lbs Weight Capacity 20" Length -
CSH True Standard Slide Full Extension 100 lbs Weight Capacity 22" Length -
CSH Soft-Close Side-Mount Slide 100 lbs Weight Capacity 26" Length -
CSH Soft-Close Side-Mount Slide 100 lbs Weight Capacity 16" Length -

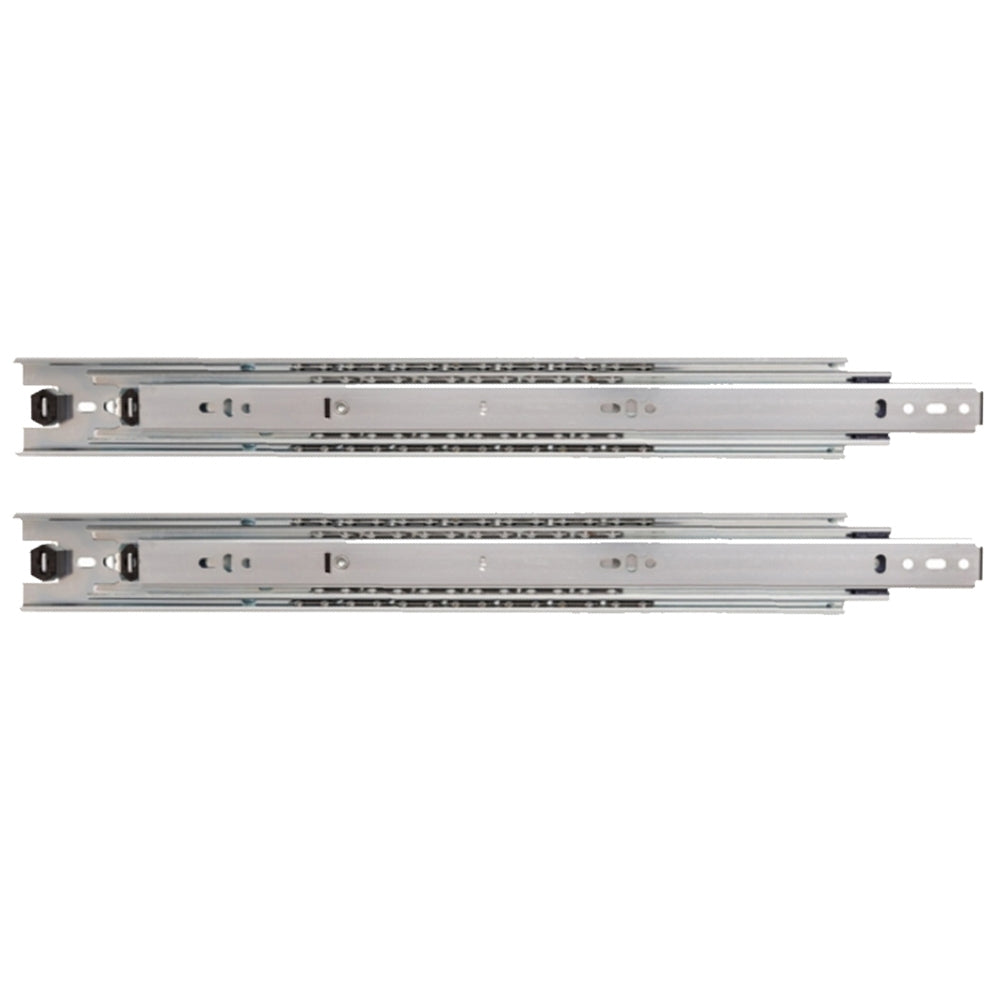

KV 8810 Series Slide Heavy Duty 28" Length -
Sugatsune Full Extension Stainless Steel 45mm Soft-Close Slide 24" Length, Sold In Pairs -
Sugatsune Full Extension Aluminum Slide 20" Length -
Hettich 4932 Series Slide 1.5" Over Extension 130 lbs Capacity 16" Length -
Hettich 4932 Series Slide 1.5" Over Extension 130 lbs Capacity 20" Length -
KV 4260 Series 2mm Push-Rebound Drawer Slide 26" Length -

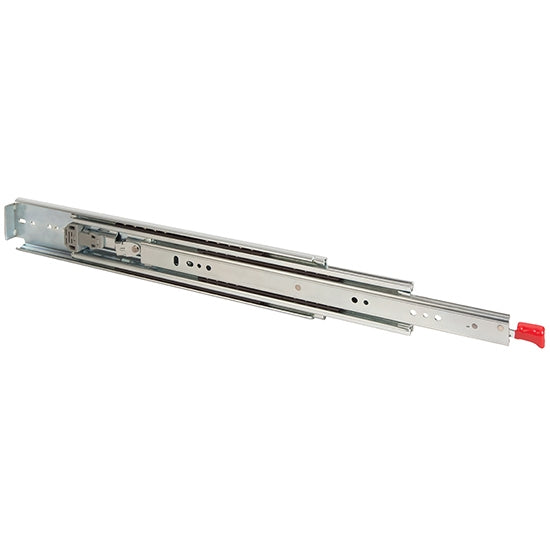

Fulterer Full Extension 450 lbs Rated Slide With Lock-In/Lock-Out Mechanism 30" Length -
CSH True Standard Slide Full Extension 100 lbs Weight Capacity 14" Length -
CSH True Standard Slide Full Extension 100 lbs Weight Capacity 12" Length -

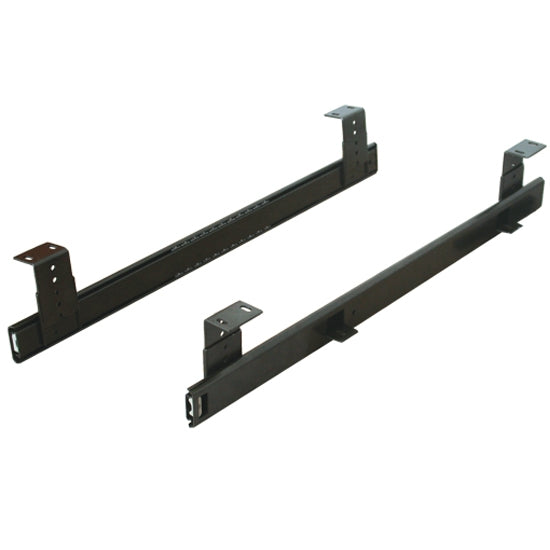

CSH Key Board Slide Ball Bearing Lock-In Lock-Out Black 18" Length -
CSH Slide Full Extension 100 lbs Weight Capacity 22" Length -
CSH Slide Full Extension 100 lbs Weight Capacity 18" Length -
CSH Soft-Close Side-Mount Slide 100 lbs Weight Capacity 18" Length -
Low Profile Full Extension Ball Bearing Slide 75 lbs Load Capacity, 16" Length -
KV 6400 Series Stainless Steel Side Mount Full Extension Slide 100 lbs Capacity 14" Length -
KV 8810 Series Slide Heavy Duty 26" Length -
KV 8810 Series Slide Heavy Duty 18" Length -
Sugatsune Full Extension Stainless Steel 45mm Soft-Close Slide 28" Length, Sold In Pairs -
Sugatsune Full Extension Stainless Steel 45mm Soft-Close Slide 22" Length, Sold In Pairs -
Sugatsune Full Extension Stainless Steel 45mm Soft-Close Slide 16" Length, Sold In Pairs -
KV 6400 Series Stainless Steel Side Mount Full Extension Slide 100 lbs Capacity 20" Length -
KV 4450 Soft-Close Box Or File Slide Side Mount Low Profile 20" Length -
KV 4450 Soft-Close Box Or File Slide Side Mount Low Profile 14" Length -
KV 4450 Soft-Close Box Or File Slide Side Mount Low Profile 10" Length
