Ferrari Cabinet Hinges

Looking for Ferrari cabinet hinges? CSH stocks the Ferrari America Compacta ET88 face-frame hinge, the IC Eco Clip inside-corner hinge, clip-on mounting plates, and the 8mm dowels and screws used to install press-in Ferrari hinges. Our Ferrari stock is sold while supplies last, so if you need a large quantity, call us at (800) 882-0009.

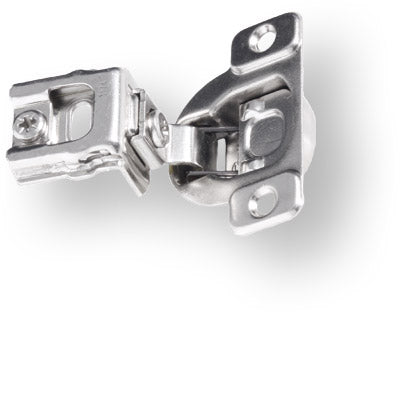

Ferrari ET88 face-frame hinge

The Ferrari Compacta ET88 hinge is a one-piece, self-closing hinge for face-frame cabinets, so no separate mounting plate is needed. It has a 1-3/8" overlay and a 105° opening angle, and its wraparound mount fits face frames up to 3/4" thick. The hinge presses into the door with pre-attached 8mm dowels; fasten it to the frame with a truss head screw, sold separately.

Ferrari corner hinge and mounting plates

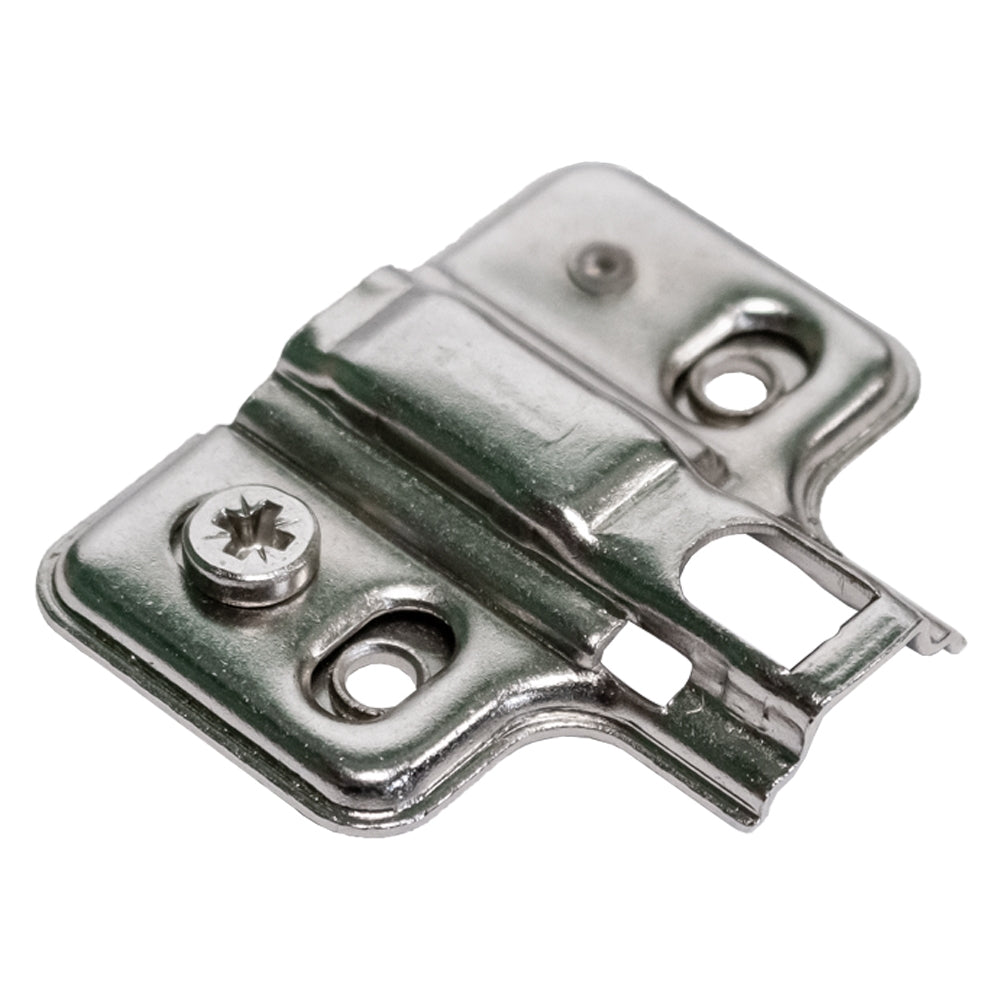

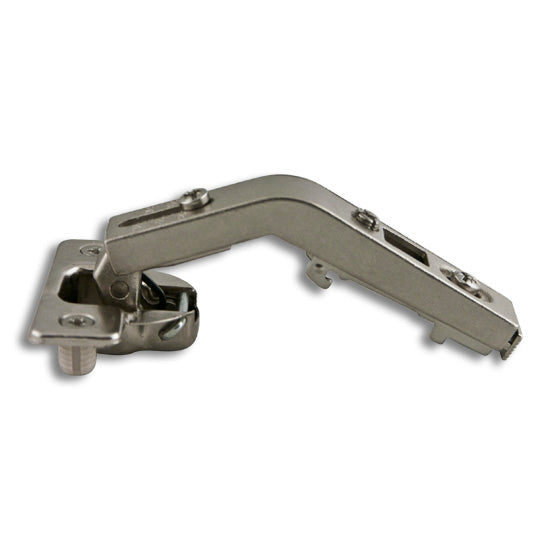

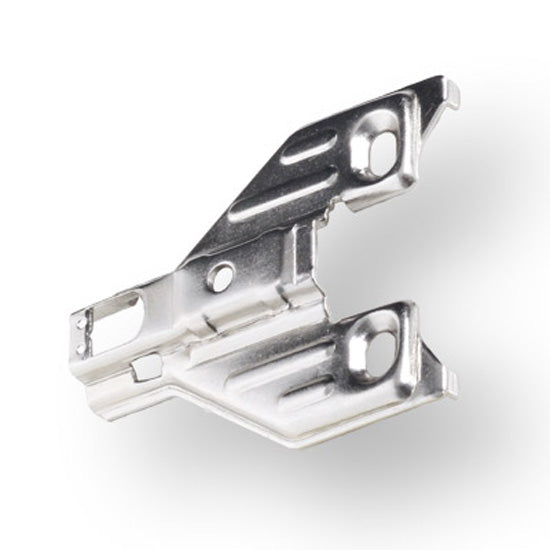

The Ferrari IC Eco Clip inside-corner hinge is a self-closing clip hinge for the inside corner of a 90° bi-fold door, used with a 170° hinge on the other side. It presses in with pre-attached 8mm dowels and has four-dimensional adjustment. Mount it on the Ferrari 0mm frameless clip-on mounting plate, which has cam vertical adjustment. For face frames, the Ferrari 1/2" overlay face-frame mounting plate is 3mm stamped steel with a 10 x 32mm wood-screw pattern and works with IC Economy clip hinges.

Dowels and screws for Ferrari hinges

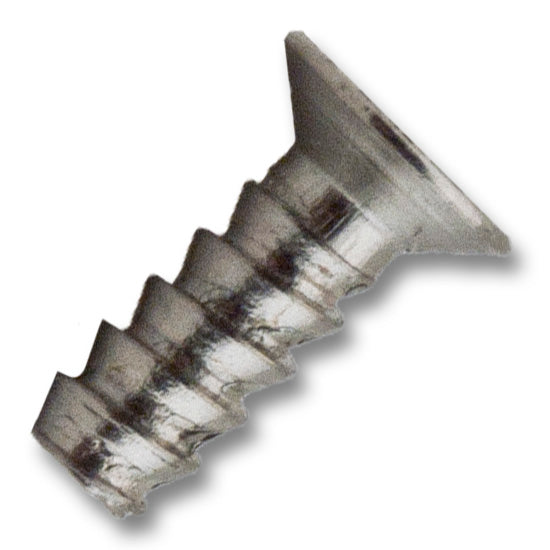

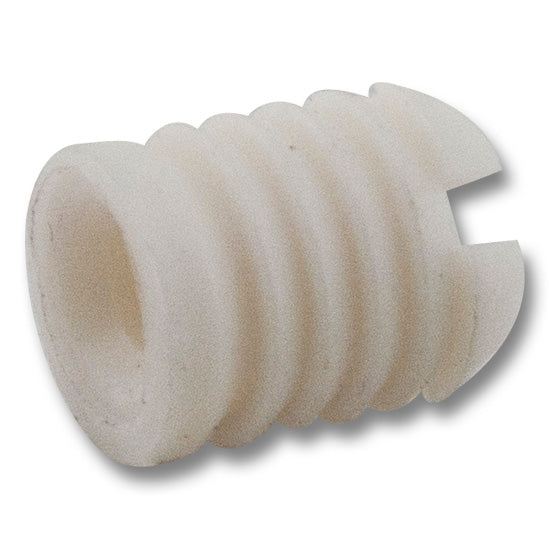

Repairing a press-in Ferrari hinge? We sell the 8mm dowel for Ferrari hinges and the matching screw for the 8mm dowel.

Replacing a Ferrari hinge

If the Ferrari hinge you need isn't listed, match a replacement by cabinet type (face frame or frameless), door overlay, opening angle and how the hinge mounts. For face-frame cabinets, Blum Compact 39C face-frame hinges come in overlays from 1" to 1-9/16", or browse all concealed cabinet hinges.

Questions

Are Ferrari cabinet hinges still available?

We have the Ferrari ET88 hinge, IC Eco Clip corner hinge, mounting plates, dowels and screws listed here while supplies last.

What can I use to replace a Ferrari cabinet hinge?

Match the cabinet type, overlay, opening angle and mounting of the old hinge. Send us a photo or call (800) 882-0009 and we'll help you find a match among our cabinet hinges.

Do I need a mounting plate for the Ferrari ET88?

No. The ET88 is a one-piece hinge. The IC Eco Clip corner hinge does need a mounting plate, sold separately.

How do press-in Ferrari hinges attach to the door?

They press into the door with 8mm dowels. We sell replacement 8mm dowels and the screws that go with them.
