Concealed Cabinet Hinges
Concealed hinges, also called European or hidden hinges, mount on the inside of the cabinet so the door closes with no hinge showing. They're the most popular choice for modern kitchens, and most can be adjusted after the door is hung so the gaps line up. We carry concealed cabinet hinges from Blum, Youngdale, Pride Industrial, FGV and Hickory Hardware for face-frame and frameless cabinets.
How concealed hinges work
The hinge cup sits in a round hole bored in the back of the door, usually 35mm across. The arm attaches to the cabinet, either directly (one-piece hinges such as Blum Compact) or by clipping onto a separate mounting plate (two-piece hinges such as Blum Clip Top). Blum hinges adjust in three dimensions, and the cup can be screwed on or pressed in, with Blum Inserta and Expando options on some models.
Face-frame concealed hinges

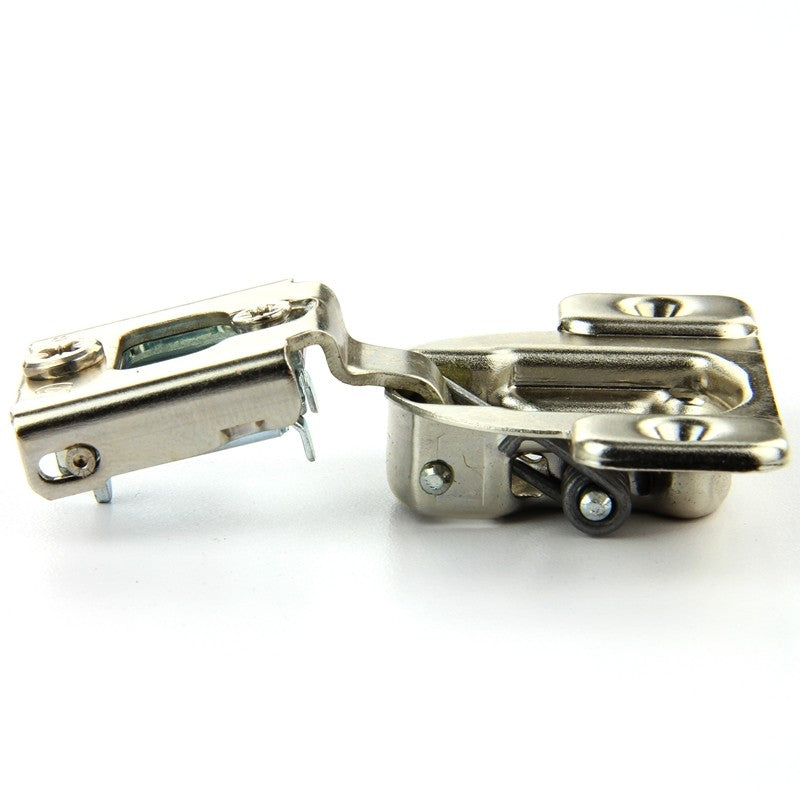

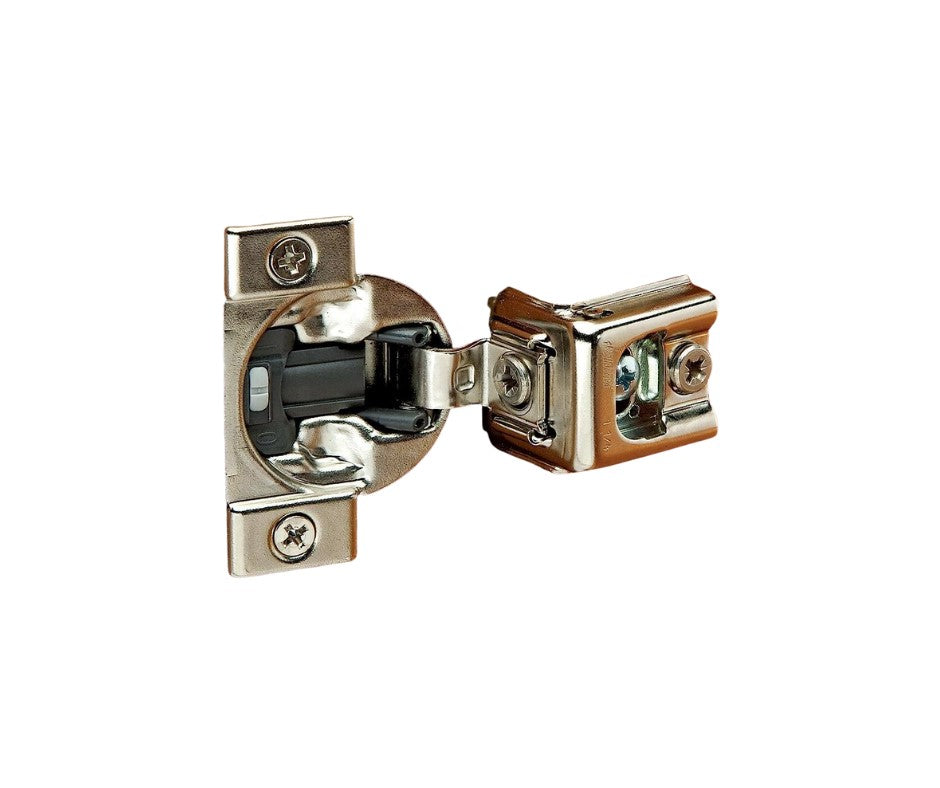

- Blum Compact 38N: overlays from 5/16" to 3/4", 105° opening, for doors up to 3/4" thick, soft-closing or self-closing.

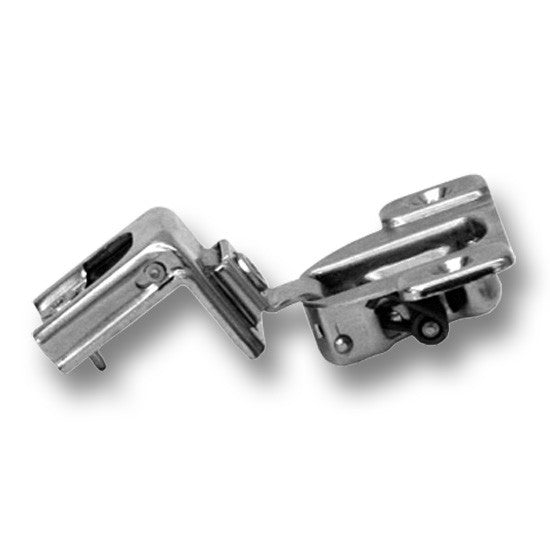

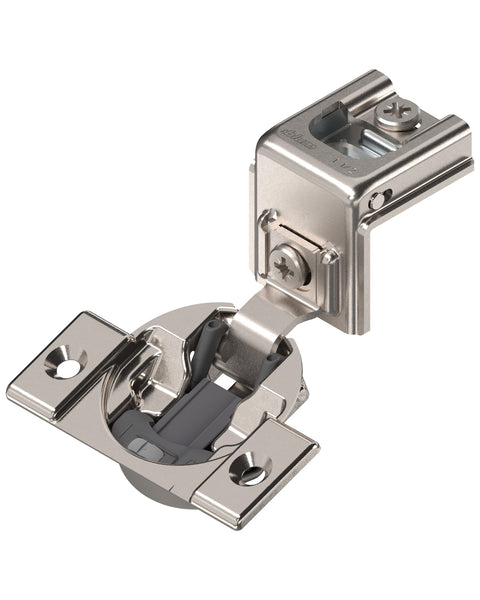

- Blum Compact 39C: overlays from 1" to 1-9/16", 110° opening, one-piece wraparound.
- Blum Compact Clip with Blumotion: a two-piece face-frame hinge with soft-close built in.

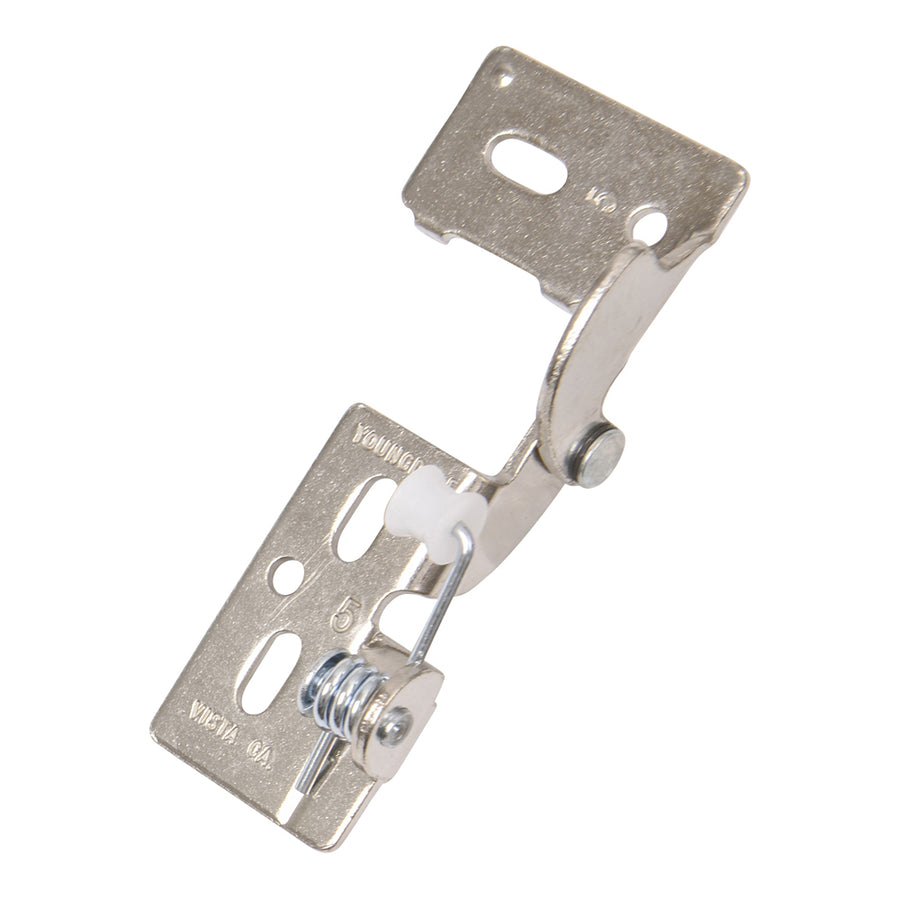

- Youngdale concealed hinges: sizes #3 to #8 in nickel, antique brass, oil rubbed bronze and white, sold each or by the box.
Full overlay, half overlay and inset

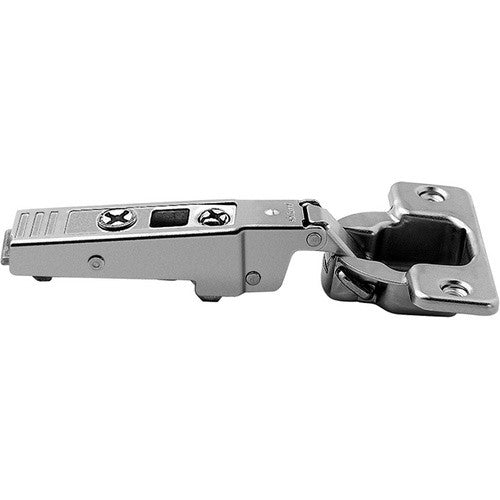

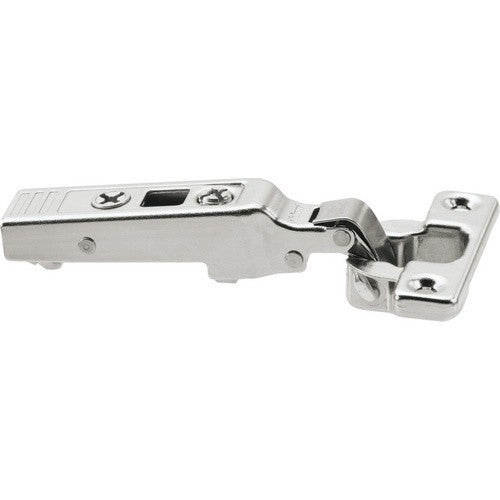

Concealed hinges are made for how the door sits on the cabinet. Blum Clip Top Blumotion 110° hinges come straight-arm for full overlay, half-cranked for half overlay (two doors sharing one partition) and full-cranked for inset doors, in nickel or black. The Pride Industrial soft-close clip-on 110° hinge also comes in full overlay, half overlay and inset versions.
Wide-angle and special-purpose hinges
The Blum Clip Top 155° zero protrusion hinge is for cabinets with inner drawers or pull-out shelves, and the Blum Clip Top 170° hinge opens doors wide for full access. We also carry Blum bi-fold, angled and thick-door hinges. To limit how far a door opens, add a Blum 86° restriction clip.
Soft-close or self-closing
Many concealed hinges come both ways. See soft-close cabinet hinges for hinges with the damper built in. Looking for hidden hinges for a full-size door instead? See SOSS invisible hinges.
Questions
What is a concealed hinge?
A cabinet hinge that mounts on the inside of the door and cabinet, so you can't see it when the door is closed. It's also called a European, Euro or hidden hinge.
What are the three types of concealed hinges?
They're usually grouped by how the door sits: full overlay (the door covers the cabinet side), half overlay (two doors share one partition) and inset (the door sits inside the opening).
Can I use concealed hinges on face-frame cabinets?
Yes. Face-frame hinges such as the Blum Compact 38N and 39C and Youngdale concealed hinges are made for face-frame cabinets. Choose the one that matches your overlay.
How are concealed hinges installed?
Bore the cup hole in the back of the door, fasten the hinge cup, attach the mounting plate or hinge arm to the cabinet, then hang the door and adjust it. Our soft-close hinge upgrade guide covers the steps.
Are concealed hinges the same as European hinges?
Yes. Concealed, European, Euro and hidden hinges all describe the same cup-style cabinet hinge.
Viewing 335 Results
Sort Most relevant
-
Youngdale Concealed Hinge -
Blum Compact 38N Overlay Face Frame Hinge -
Blum Compact 39C Overlay Face Frame Hinge -
Blum 60° CLIP Top Bi-Fold Hinge Self-Closing Screw-on -
Clip Top Blumotion 110 Degree Hinges Full Overlay -

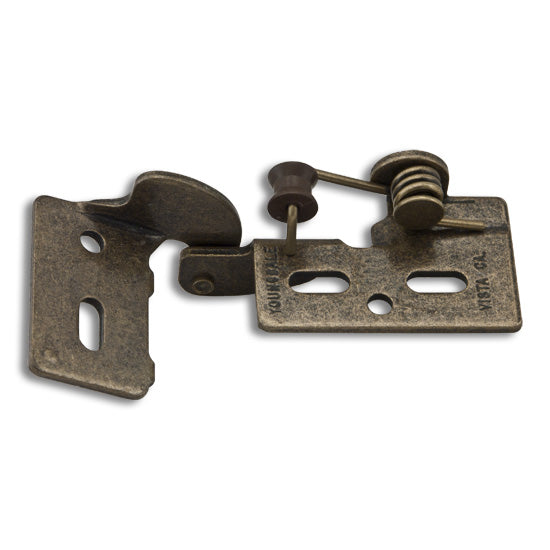

Youngdale Concealed Hinge, Antique Brass, #4 -
Blum Clip Top 170 Degree Self Closing Hinge -
Clip Top Blumotion 110 Degree Hinges Full Overlay Nickel Finish Screw-On -

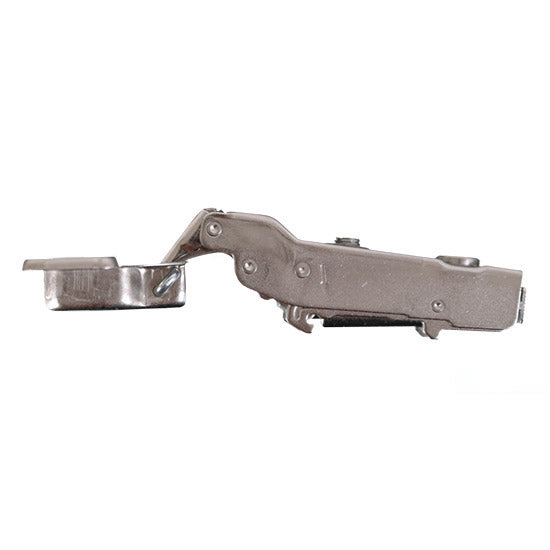

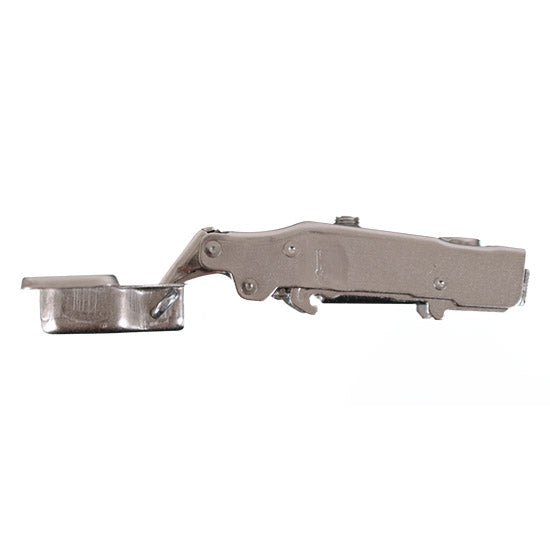

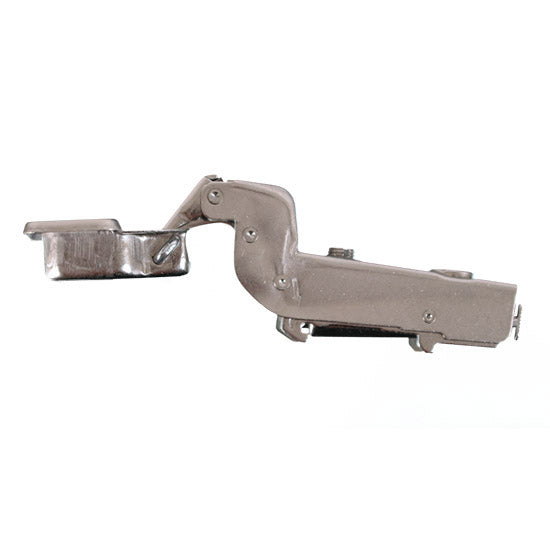

Pride Industrial Soft Close Clip-On 110 Hinge -
Blum Clip Top 170 Degree Self Closing Hinge, Screw-On, Straight Arm -
Blum Compact 38N Overlay Face Frame Hinge, 1/2" -
Youngdale Concealed Hinge, Antique Brass, #5 -

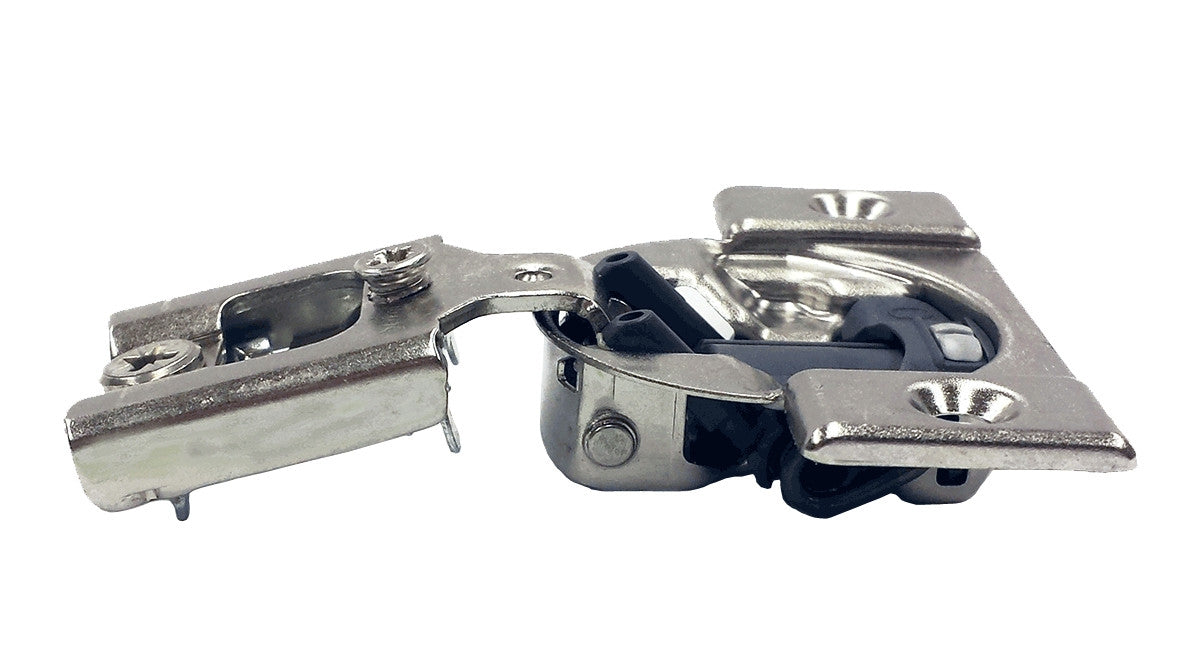

Blum Compact 38N Overlay Face Frame Hinge, 3/4" -
Blum Clip Top 155 Degree Zero Protrusion Hinges Full Overlay -
Clip Top Blumotion 110 Degree Inset Hinge Full Cranked Self-Closing Steel -
Clip Top Blumotion 110 Degree Hinges Half-Cranked Self-Closing Steel -

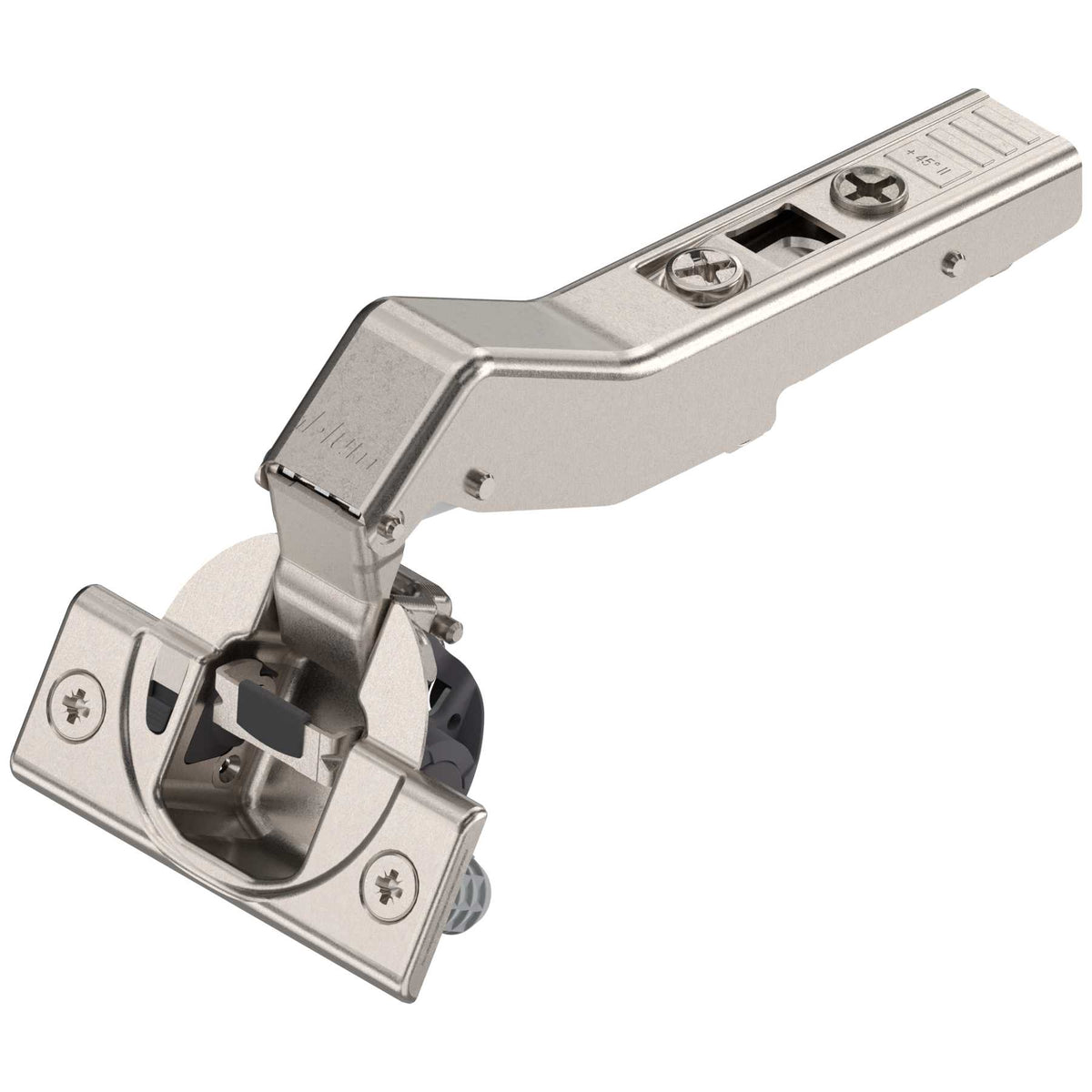

Clip Top Blumotion 110 Degree, Angled Hinge 45° Ii, Overlay, Hinge Cup, Nickel-Plated, Screw-On -
Clip Top Blumotion 110 Degree Half Overlay Hinges Half-Cranked Self Closing Nickel Finish Screw-On -
Blum Clip Top 120 Degree Hinge Self-Closing Full Overlay -
Blumotion Compact 38N 1/2 Inch Overlay Face Frame Hinges 105-Degree Opening -
Blum Clip Top 120 Degree Hinge Self Closing Full Overlay, Screw-On -
Blum Compact 39C Overlay Face Frame Hinge, 1-1/2" -

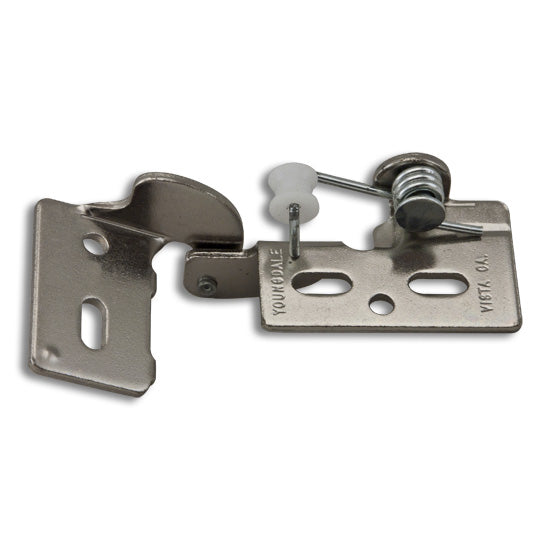

Youngdale Concealed Hinge, Nickel, #6 -
Blum Compact 39C Overlay Face Frame Hinge, 1-3/8" -
Blum Compact 39C Overlay Face Frame Hinge, 1-1/4" -
Blum Compact 39C Overlay Face Frame Hinge, 1" -
Blumotion Compact 38N 1/2 Inch Overlay Face Frame Hinges 105 Degree -
Blum Clip Top 110 Degree Hinge Self Closing -
Pride Industrial Soft Close Clip-On 110 Hinge, Screw-On, Inset -
Blum Clip Top 155 Degree Zero Protrusion Hinges Full Overlay, Screw-On, Soft-Closing -
Clip Top Blumotion 110 Degree Inset Hinge Full Cranked Self Closing Steel Nickel Finish Screw-On -
Youngdale Concealed Hinge, Antique Brass, #6 -

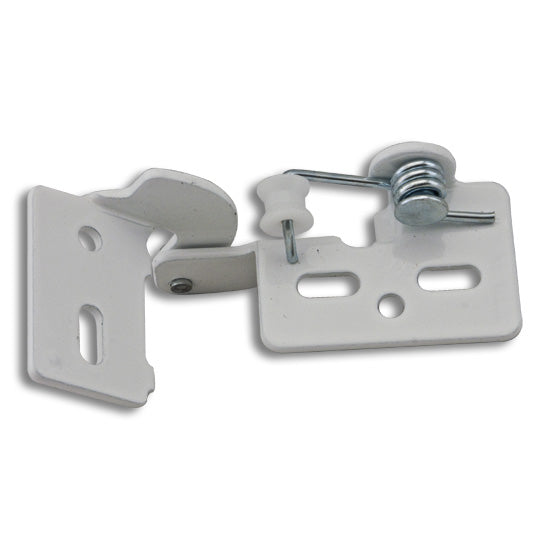

Youngdale Concealed Hinge, White, #5 -
Youngdale Concealed Hinge, Oil Rubbed Bronze, #4 -
Blum Compact 38N Overlay Face Frame Hinge, 3/8" -
Pride Industrial Soft Close Clip-On 110 Hinge, Screw-On, Half Overlay
