Shop Murphy Bed Hardware

Murphy Bed Hardware

Murphy bed hardware is the mechanism and frame that let a bed fold up into a wall cabinet and pull down at night. We sell the hardware kits, not finished beds: you or your cabinetmaker build the cabinet, and the mechanism does the lifting. Choose vertical or side tilt hardware in twin, full and queen sizes, plus springs, legs and mattress straps to finish the build.

Vertical Murphy bed hardware

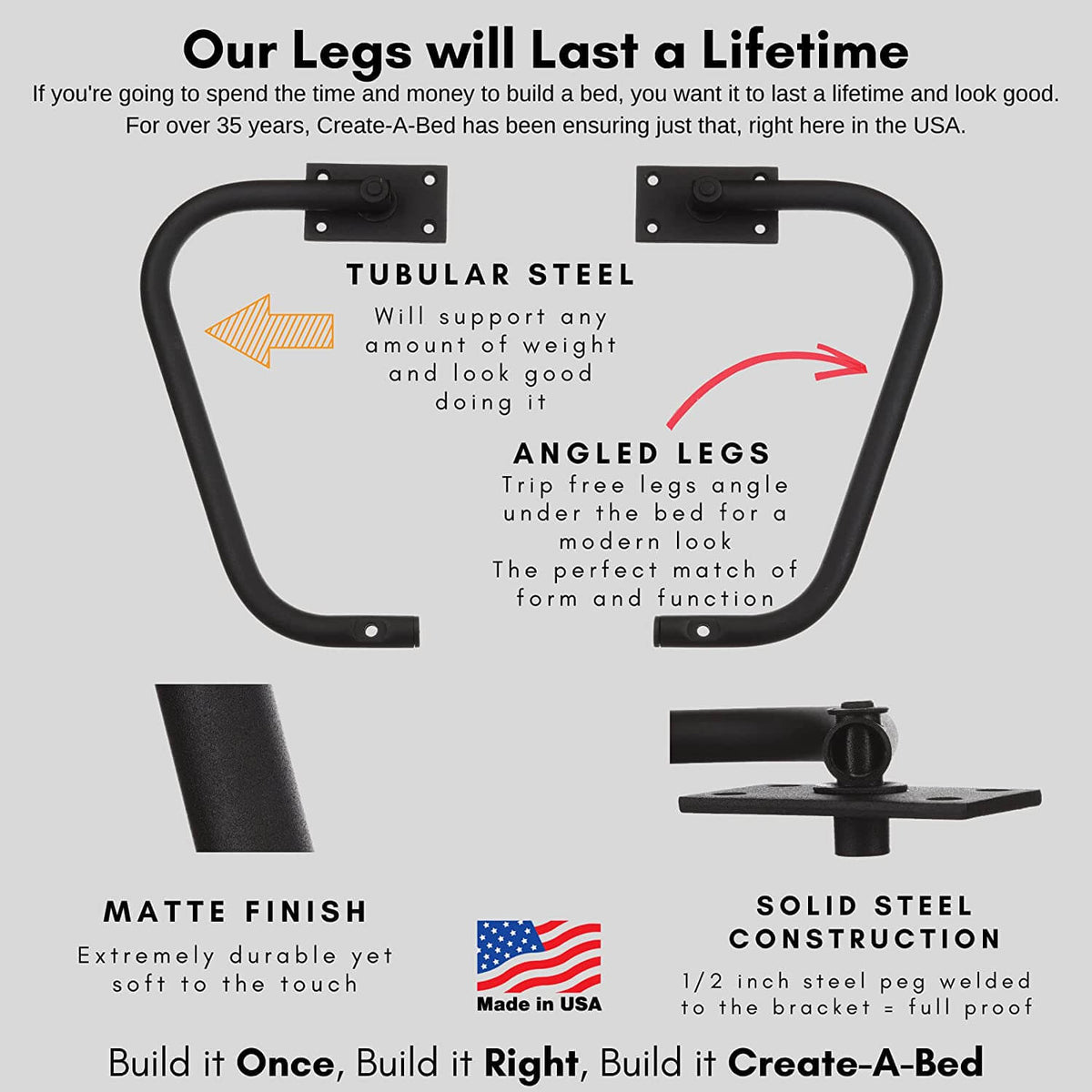

The Vertical Supreme Steel Hardware System includes one mechanism and one bed frame with a regular leg, in single/twin, double/full and queen sizes. It's sold as a hardware kit only, so the cabinet is not included. The same system also comes with extended legs in double and queen.

Side tilt Murphy bed hardware

The Side Tilt Supreme Steel Hardware System folds the bed down from its long side, so the cabinet runs along the wall instead of up it. Each kit includes one mechanism and one frame with a regular leg, in single/twin, double/full or queen. Cabinet not included.

Selby wall bed mechanisms

The Selby vertical wall bed mechanism is a spring-powered counterbalance system with the springs and moving parts enclosed in 12-gauge steel. Spring tension adjusts with a handle to suit your cabinet materials and bedding. Each set includes right and left counterbalance mechanisms, right and left dual-purpose legs, two pivot mount plates and fasteners. Choose concealed or exposed mechanisms for twin, double or queen beds, with maximum weight ratings of 110 lbs, 165 lbs and 243 lbs. The manufacturer says these mechanisms are not for DIY assembly and should be installed by a qualified builder or licensed contractor.

Murphy bed parts

More space-saving bed hardware

The horizontal descending bed platform hardware kit comes in 39" and 54" sizes. For storage under a platform bed, see storage bed lift mechanisms, or browse all bed frame hardware.

Questions

Do these Murphy bed kits include the cabinet?

No. These are hardware kits. The Supreme Steel systems include the mechanism and the bed frame with legs; the Selby sets include the mechanisms, legs, pivot plates and fasteners. The cabinet and mattress are not included.

What size mattress fits?

The Supreme Steel systems are sized for single/twin (39" x 75"), double/full (54" x 75") and queen (60" x 80") mattresses up to 10" thick.

Vertical or side tilt: which Murphy bed hardware do I need?

A vertical bed folds down from its head end, so the cabinet stands tall and narrow. A side tilt bed folds down from its long side, so the cabinet is low and wide, which helps in rooms where a vertical bed is too tall.

How does a Murphy bed mechanism work?

Counterbalance springs carry most of the bed's weight, so you can raise and lower it by hand. On the Selby mechanism you change the spring tension by turning a handle when your cabinet materials or bedding change. Super Springs add capacity for a heavier bed panel.

Can I build a DIY Murphy bed with this hardware?

Every kit here needs a cabinet built around it. Selby says its wall bed mechanisms should be installed by a qualified builder or licensed contractor. If you're planning a DIY build, contact us before you order and we'll help you choose the right kit.
